Speroni Drainbox 200-SVS 801 Lifting station
Speroni Drainbox 200-SVS 801 rain and waste water lifting station - 200 lt PE tank with SVS 801 single-phase submersible electric pump complete with float switch, 10 m cable with Schuko plug

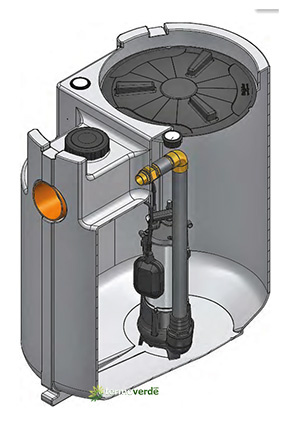

PRODUCT CODE: 101281120The lifting station consists of a PE tank with a pumping system inside complete with delivery pipe, with the function of collecting and relaunching rainwater or wastewater to a higher level. It is generally used downstream of domestic drains.
COMPONENTS
- Polyethylene tank capacity 200 lt., non-drive-over cover
- Single-phase submersible electric pump complete with float switch and 10 mt. of cable with Schuko plug
PUMP CHARACTERISTICS
- Single-phase 230V-50Hz
- Oil chamber for seal lubrification
- Insulation Class F
- Protection IP 68
- Built-in capacitor
- Overload protection
- Power cable 10 mt.
- Standard floater
- Motor casing Stainless Steel
- Pump body Cast Iron
- Pump casing Cast Iron
- Impeller Cast Iron
- Shaft with rotor Stainless Steel
- Mechanical seal
